P10 High Brightness 480mm*320mm Led Module High Refresh Rate Aluminum Outdoor Led Display Front Service

P10  High Brightness  480mm*320mm Led Module High Refresh Rate Aluminum Outdoor Led Display Front Service
P10  High Brightness  480mm*320mm Led Module High Refresh Rate Aluminum Outdoor Led Display Front Service P10  High Brightness  480mm*320mm Led Module High Refresh Rate Aluminum Outdoor Led Display Front Service P10  High Brightness  480mm*320mm Led Module High Refresh Rate Aluminum Outdoor Led Display Front Service P10  High Brightness  480mm*320mm Led Module High Refresh Rate Aluminum Outdoor Led Display Front Service

大画像 :  P10 High Brightness 480mm*320mm Led Module High Refresh Rate Aluminum Outdoor Led Display Front Service

商品の詳細:
起源の場所: 深セン
ブランド名: Longda LED
証明: CE/RoHs/FCC/CCC/ISO9001/ISO14001
モデル番号: P10
お支払配送条件:
最小注文数量: 1平方メートル
価格: Usd799~Usd1099/Sqm(price is negotiable)
パッケージの詳細: フライトケースパッキングまたは合板ケースパッキング
受渡し時間: 15〜18日
支払条件: L/C、T/T、Western Union、MoneyGram
供給の能力: 月額5000sqm

P10 High Brightness 480mm*320mm Led Module High Refresh Rate Aluminum Outdoor Led Display Front Service

説明
ハイライト:

P10 high brightness LED module

,

480mmx320mm outdoor LED display

,

front service aluminum LED panel

P10 High Brightness 480mm*320mm Led Module High Refresh Rate Aluminum Outdoor Led Display Front Service
Outdoor high-brightness common cathode energy-saving display is designed for various outdoor environments. It ensures excellent heat dissipation and durability against extreme weather conditions. With common cathode power technology, it delivers higher energy efficiency, brighter visuals, and more stable operation compared to traditional displays. Ideal for outdoor advertising, public information systems, and large-scale events, it offers exceptional visibility even under direct sunlight while reducing power consumption and maintenance costs.
Features:
  • Hub board connection
  • Hidden cable box design
  • High brightness
  • Energy saving design

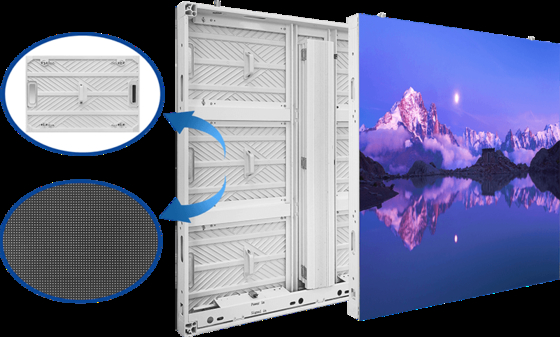

  • Front and rear service
  • Curved splicing
  • High refresh rate
  • Self-cooling technology
Technical Parameters
Pitch P10
Module Size 480mm*320mm
Module Resolution 48*32
Cabinet Resolution 96*96
Cabinet Size 960mm*960mm
Service Front Service
Circuit Common Cathode Circuit
G.w/Cabinet 4.8kg~5kg
Brightness 5000cd/m²(3000-8000cd)
Refresh Rate 3840Hz
Viewing Angel Horizontal 160°Vertical 140°
Working Voltage 100-240V,AC 50-60Hz
Connection Method Harawired
Max Consumption/cabinet ≤450W
Ave Consumption/cabinet ≤260W
Applications

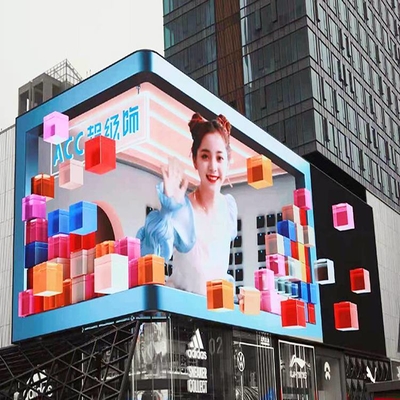

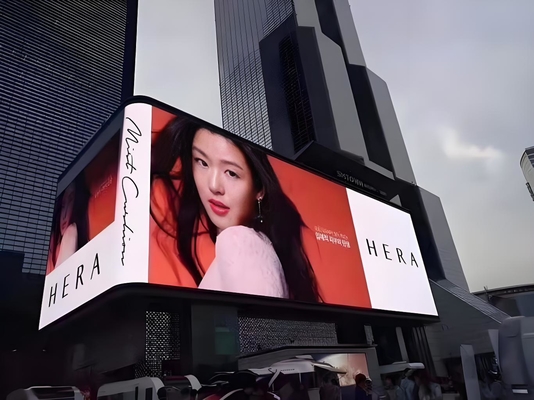

This display is ideally suited for outdoor advertising billboards, public transportation hubs, stadiums, and large-scale event venues. The robust aluminum construction provides superior heat dissipation and weather resistance, guaranteeing reliable performance in various conditions.
P10  High Brightness  480mm*320mm Led Module High Refresh Rate Aluminum Outdoor Led Display Front Service 0 P10  High Brightness  480mm*320mm Led Module High Refresh Rate Aluminum Outdoor Led Display Front Service 1
